Feature: |
1. Pilot operated diaphragm structure,nylon reinforced. |
|
2. Double filtration to protect solenoid core. |
|
|
3. Water proof sealing coil. |
|
|
4. Close slowly function to prevent the water hammer. |
|
|
5.lndividual on/off switch and flow control stem. |
|
|
Medium: |
Water |
|
Temp： |
Water Temp ≤53*C, Surrounding Temp ≤80*C |
|
Application: |
One of the most widely used valves in agriculture and landscaping irrigation systemjike large area of lawn,stadium,agriculture,industrial dust and water treatment. |
|
Pressure: |
0.1-1 .OMPa |
|
Flow: |

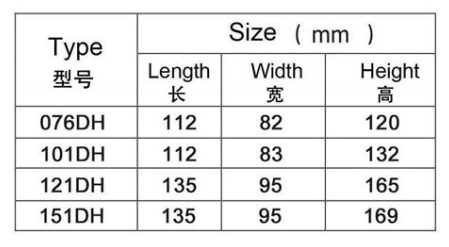

076DH5.0m3/h, 101DH9.0m3/h |
|
121DH15.0m3/h, 151DH21.0m3/h |
|
|
Port size: |
3/4"，1"，1¼"，1½" |
|
Port thread: |
Female G BSP,NPT（customaization) |
|
Orifice: |
DN20 DN25 DN32 DN40 |
|
Voltage: |
AC220V/AC110V/AC24V,50/60Hz |
|
DC24V/DC12V/DC9V |
|
|
DC Latching |
|
|
Material: |
Body---------------------reinforced nylon |
|
Sealring------------------ NBR |
|
|
The movable iron core-stainless steel 430F |
|
|
The static iron core------stainless steel430F |
|
|
Springs ---------------- SUS304 |
|
|
Shading coil-------------red copper |
